了解詳細規格及基本參數詳情
|

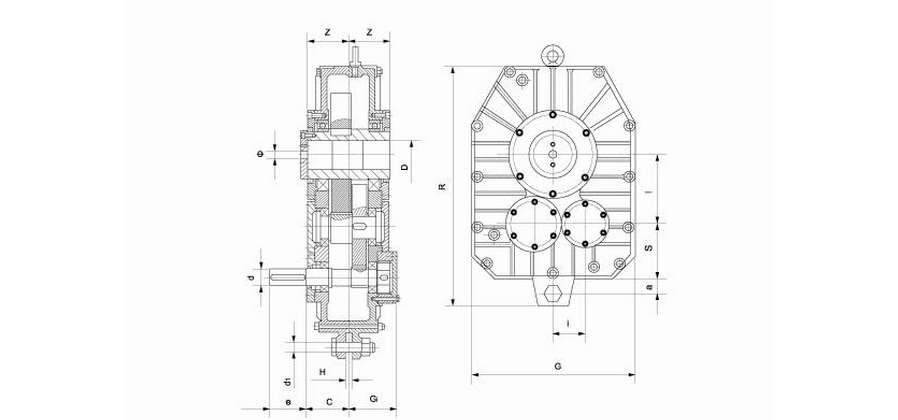

機型 Type |
Z | ? | D | d | d1 | H | e | c | Gi | R | L | G | S | a | i |
| ZJY106 | 67 | 11 | 45 | 24 | 16 | 9 | 50 | 83 | 88 | 315 | 103.0 | 240 | 80 | 40 | 50 |
| ZJY125 | 76 | 13 | 55 | 38 | 16 | 12 | 60 | 78 | 100 | 378 | 120.0 | 270 | 102 | 48 | 55 |
| ZJY150 | 85 | 13 | 60 | 38 | 16 | 12 | 80 | 98 | 110 | 445 | 144.3 | 330 | 105 | 53 | 65 |
| ZJY180 | 100 | 17 | 70 | 42 | 30 | 17 | 110 | 117 | 133 | 539 | 174.3 | 396 | 145 | 65 | 80 |
| ZJY212 | 120 | 13 | 85 | 48 | 20 | 20 | 110 | 121 | 156 | 625 | 204.7 | 477 | 160 | 70 | 95 |
| ZJY250 | 150 | 26 | 100 | 55 | 24 | 18 | 110 | 165 | 164.5 | 740 | 241.4 | 570 | 195 | 70 | 125 |
| ZJY300 | 164 | 32 | 120 | 65 | 20 | 20 | 140 | 182 | 185 | 840 | 288.6 | 660 | 210 | 75 | 130 |
|
規格 Specs |
106 | 125 | 150 | 180 | 212 | 250 | 300 |
|
扭矩（N.m) Torque(N.m) |
750 | 1250 | 2120 | 3550 | 6000 | 10000 | 14720 |
|
重量 Weight(kg) |
27 | 40 | 40 | 110 | 173 | 250 | 380 |
|
公稱傳動比i Nominal drive ratio i |
公稱轉速r/min
|
規格Specs | ||||||||
|
輸入n1 input n1 |
輸出n2 Output n2 |
106 | 125 | 150 | 180 | 212 | 250 | 300 | ||
| 公稱輸入功率PA KW Nominal input PA KW | ||||||||||
| 10 |
1500 1000 750 |
150 100 75 |
12 8.2 6.2 |
19 13 9.8 |
33 22 17 |
56 38 29 |
92 62 47 |
157 105 79 |
225 150 113 |
|
| 11.2 |
1500 1000 750 |
134 89 67 |
11 7.4 5.6 |
17 11 8.5 |
30 20 15 |
51 34 26 |
83 56 42 |
137 92 69 |
206 138 104 |
|
| 12.5 |
1500 1000 750 |
120 80 60 |
9.7 6.5 4.9 |
15 10 7.6 |
27 18 14 |
46 31 23 |
76 51 39 |
125 83 63 |
179 119 90 |
|
| 14 |
1500 1000 750 |
107 71 54 |
8.2 5.5 4.1 |
14 9.4 7.1 |
24 16 12 |
39 26 20 |
65 43 33 |
107 71 54 |
162 108 82 |
|
| 16 |
1500 1000 750 |
94 62 47 |
7.3 4.9 3.7 |
12 8.5 6.1 |
21 14 11 |
35 24 18 |
58 39 30 |
98 64 48 |
148 98 74 |
|
| 18 |
1500 1000 750 |
83 56 42 |
6.4 4.3 3.3 |
11 7.3 5.5 |
18 12 9 |
31 21 16 |
51 34 26 |
86 58 44 |
131 88 66 |
|
| 20 |
1500 1000 750 |
75 50 38 |
6 4 3.1 |
10 6.7 5.1 |
17 11 8.6 |
27 18 14 |
45 30 23 |
77 52 39 |
117 78 59 |
|
| 22.4 |
1500 1000 750 |
67 44 33 |
5.2 3.5 2.6 |
8.7 5.9 4.4 |
15 10 7.5 |
25 17 13 |
42 28 21 |
72 48 36 |
103 69 52 |
|
| 25 |
1500 1000 750 |
60 40 30 |
4.6 3.1 2.3 |
7.6 5.1 3.8 |
14 9.4 7.1 |
22 15 11 |
37 25 19 |
63 42 32 |
90 60 46 |
|
